A Belt scale or Belt weigher is an instrument used to measure the flow rate of the material travelling over the conveyor belt. Basically we incorporate this belt scale in to the existing or newly manufactured conveyor systems, the conveyor belt can be of trough type with or without inclination or a flat surfaced belt conveyor. The conveyor belt length can be of different size. Our belt scale shall even be fabricated as per your dimensional needs for satisfying your requirements exactly.

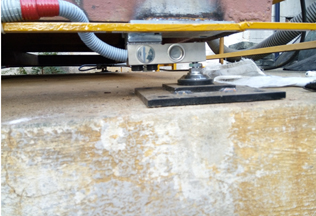

Our belt scale shall consist of standard single idler or multiple idler weigh frames which is balanced and mounted on load cells, fixed below the conveyor belt and the complete weighing assembly is mounted on the conveyor frames. MAKO belt scale will accurately measure the load and measure the speed of the conveyor and calculate the rate of material flow instantly and display the totalize value of material flown on the belt using P.L.C systems, which will in turn deliver long term accurate, reliable and repeatable product weighing.

Belt scales are commonly incorporated in

1. Extraction Industry (Sand, Stone, Aggregates, Coal)
2. Mineral Industry (Fertilizers, Cement)
3. Agri Business (Bagasse, Sugar)
4. Chemical Industry ( Salts, PVC, Washing Powder, Sulphate, Soaps)
5. Wood Industry
6. Re – Cycling, and Crushing Industry

Flow Rate: 300 Kgs / Hour ~ 5000 TPH
Belt Width: 250 mm till 2500 mm

FEATURES

⋆ 1. Triple beam type load cells for better and highest accuracy

⋆ 2. Simple Installation/p>

⋆ 3. Steel Structure with powder quoted paint

⋆ 4. Over Load protection

⋆ 5. Colourful graphical display

⋆ 6. Simple and easy calibration procedures

⋆ 7. Automatic Belt Zeroing

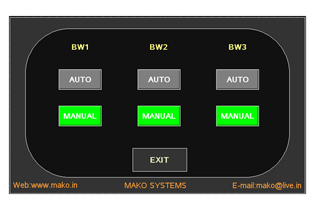

⋆ 8. Touch screen based settings

⋆ 9.Field software upgrades

⋆ 10.Totalise values for last 30 days

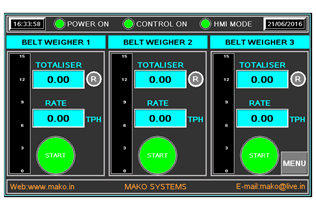

⋆ 11.H.M.I based design

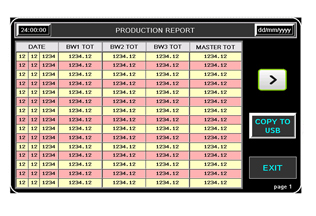

⋆ 12.Reports can be transferred to USB

We are Manufacturing Loss in Weigh feeder basically for finely grounded powder materials like Fly Ash, coal, Slag materials, Medicines, Sugar Powders, etc.. Loss-in-weight feeders can be used for both small to medium feeding ranges. They work with extreme precision under optimum ambient conditions. They are very flexible even with poorly flowing products. They are used in many continuous processes such as feeding extruders requiring a high level of short-term feeding consistency. They are also used in the food industry and in laboratories by means of appropriate storage containers and adapted feeding devices. The design varies from compact constructions to modular concepts depending on feed rate required for the process.

Loss-in weigh feeders for bulk materials consist of: storage tanks, controlled feeding devices such as rotary air locks/ rotary vane feeders, chutes, Vibrators as well as load cells structure along with screw conveyor for weighing and discharging the materials

A loss in weigh feeder is gravimetric metering devices that receives material from an upstream supply like storage hoppers or cement silos and accurately doses the material into a process at a predetermined set feed rate, typically through a screw conveyor, twin screw, or vibratory tray. True to its “loss in weigh” name, this feeder’s operation is regulated by the amount of live load that is lost as the product is discharged. In order to do this effectively, the loss in weigh feeder receives constant feedback from a sensitive weighing device, which ensures that the precise amount of material is delivered either continuously or in each batch as required.

A Loss In Weigh feeding system includes a supply hopper or tank, a metering feeder or pump, a supporting scale system, and a PLC based controller. The system electronically balances tare weight so the controller senses only the weight of the material in the supply hopper.

At time zero, the hopper is full (high weight), and the operator enters the set point or desired feed rate into the controller.

As time and discharge advance, the actual sensed “loss in weight” follows the decreasing scheduled weight ramp whose slope is a direct representation of the desired weight of delivered material per unit of time (set point). The controller makes frequent comparisons of sensed vs desired rate and alters the feeder’s output, keeping it at the set point.

Once the sensed weight reaches the hopper refill level (low weight), the controller locks the feed system into volumetric control. The hopper is recharged, and the loss in weigh cycle repeats. The controller rate disturbance mode protects against any outside weight disturbance that might cause an upset and provides the unique ability to manually load the hopper at any time without disturbing the feed process.

CHARACTERISTICS

⋆ 1. Loss in Weigh system generates continuous mass flow.

⋆ 2. The system is provided with either Screw Feeder or Vibrator feeder for regulating the discharge, depending upon the characteristics of the material.

⋆ 3. The System comprises of a suitable weigh hopper ranges from 50 ~ 5000 Kgs with load cells.

⋆ 4. The weight of the material in hopper is measured and correspondingly, the output-feeding device regulates the flow & keeps it constant as per the set value.

⋆ 5. The Hi-low Level is automatically determined using load cells, which are provided in the hopper, which in turn regulates the refilling of hopper during continuous proportioning without interruption of the mass flow.

⋆ 6. Totally enclosed systems can also be provided for hazardous material of atmospheric conditions.

⋆ 7. Compact in size; occupies less space.

INTRODUCTION TO SILO/TANK/HOPPER/VESSEL WEIGHING SYSTEM

This is one of the gravimetric methods of accurate weighing mechanism; this weighing system measures the actual weight of the material which is inside the Silo/Tank/Hopper/Vessel. Examples of materials measured are cement, sand, aggregates, flour, grains such as corn, rice, wheat, chemicals which are in granules or in powder form with easily flow ability etc. tanks are used to basically weigh the liquids like water, oils of different kinds, liquid chemicals etc. Load cells are placed at the outer body of the Silo/Tank/Vessel/Hopper. The measurement can be made to cold, atmospheric temperature, frozen, aggressive, non free flowing and for all kinds of repose angle material, irrespective of the dimensions or sizes of the tanks/Silos. The resistance changes are extremely accurate and stable.

FEATURES

⋆  Very high accuracy

⋆  Weighing Range from 10 Kgs till 10,00,000.00 Kgs

⋆  Menu with password protection

⋆  Easy Calibration procedure, easy to read screen

⋆  Choice of kg or tonnes in Display

⋆  Both Resettable and Non-Resettable Totalizer

⋆  Remote Display & Totalizer Options

⋆  Provision of various kinds of reports and alarms

⋆  USB Memory data logging allowing quick and easy access to data

BENIFITS OF SILO WEIGHING SYSTEM

⋆  Level indicators (for stockage or re-orders)

⋆  Dosing of weighing material

⋆  Loading can be carried out by the drivers themselves with automatic loading end when the nominal value is reached

⋆  Integration of scales into existing process control systems

⋆  Registration and storage of e.g. actual quantities, registered quantities

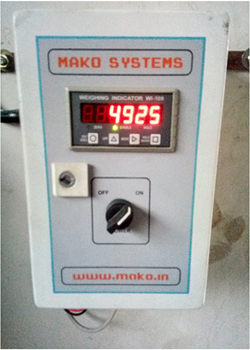

WEIGHING INDICATOR SPECIFICATIONS

Model no : WI-108

Technical Specifications
Power supply	DC24V±5%
Working temperature	-10～40C
Max humidity	90%R.H without dew
Power consumption	About 10W
Dimension	110×89×69mm
Load cell power	DC 5V 200mA (max)
Input impedance	10MΩ
Zero steady range	0.00 ～ 12mV(Load cell 3mV/V)
Input sensitivity	0.1uV/d
Input range	0.00 ～ 15mV(Load cell 3mV/V)
Transfer mode	Sigma - Delta
A/D conversion speed	15, 30, 60, 120, 480, 960 times/sec
Non-linearity	0.01% F.S
Gain drift	10PPM/C
Display Precision	1/100,000
Weight display	6 digits red high-brightness LED
Minus display	“-”
Overload display	“OFL”
Decimal point	5 kinds (optional)
Function keys	4 keys somniferous keypad

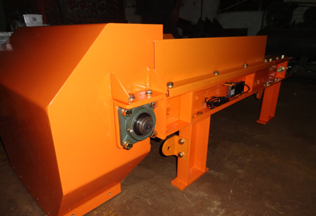

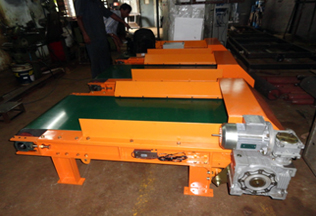

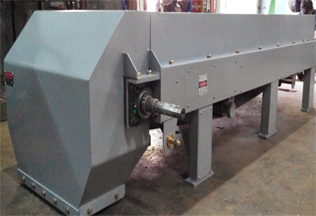

A Weigh Feeder is a device specifically designed to meter various products by weigh control. A scale is an integral component of a weigh feeder. Weigh feeder can be used to extract material at a specified rate or to pre defined amount of material.

Weigh Belt Feeder is designed for high accuracy on materials with required flow rates. It can be used in both food grade and industrial environments. It allows you to accurately control the feed rate of your process with a guaranteed accuracy of +/-0.25% to 0.5%. It can help you automate your blending system, assure precise feeding of additives, give you better process control and provide you with crucial information for the running of your plant.

Material is fed into the weigh belt via a feed hopper; this hopper is equipped with a manually adjustable profile gate which controls the bed depth on the feeder belt. The weighbridge assembly built into the feeder measures the gravimetric force applied by the material travelling down the belt and converts this force into a mV signal which is proportional to the loading on the belt. A digital speed sensor continuously monitors the belt speed and the powerful programmable logical control based of 2700 model system integrates these two signals to give you an instantaneous rate of flow and totalized weight of material that has passed through the feeder.

The Weigh Feeder 2700 series integrator also provides analogue or digital outputs that allow you to control and monitor your process.

APPLICATIONS

⋆ 1. Cement Industry

⋆ 2. Mining Area

⋆  3. Steel Industry

⋆ 4. Batching Plant

⋆ 5. Paper Industry

⋆ 6. Sugar Industry

⋆ 7. Animal Feed Plant

⋆ 8. Chemical Diligence

⋆ 9. Stone Crushing Plant

ADVANTAGES OF WEIGH FEEDERS

⋆ 1. Ratio Control (Master process Control)

⋆  2. Selection of weigh feeders individually and Interlocking between each weigh feeder for better process control along with Alarm time selection for tripping

⋆ 3. Speed display in M/H

⋆ 4. No load on belt indication

⋆  5. Instantaneous flow rate KG/H

⋆  6. Managing the feed rate as required

⋆  7. Weighing accuracy of +/-0.25% and better

⋆  8. Records the quantity of material passing as per shift timing selected

⋆  9. Achievement of exact process value according to set value

⋆  10. Any problem during the process with one weigh feeders trips then all the weigh feeders in process trips

SYSTEM FEATURES

⋆ • Open and fully enclosed unit.

⋆ • Excellent colour graphic display.

⋆ • Feed rates from 100kg/hr to 5,000TPH.

⋆ • Software calibration through Touch Screen.

⋆ • P.L.C based design; ensuring highest reliability.

⋆ • Head and tail pulley crowned and rubber lagged.

⋆ • Wide range of belt width from 300mm to 2500mm.

⋆  • Two/Four load cells for high accuracy in each conveyor.

⋆  • Driving end can be changed from left to right or right to left.

⋆  • Load transducer located external to the material flow channel.

⋆  • Long term accuracy and repeatability with low cost of ownership.

⋆  • Can be easily and economically adapted to support future capacity needs.

⋆  • Weigh Bridge is insensitive to the accumulation of weight that accompanies tare build-up.

DEDICATED WEIGH FEEDER SOFTWARE ADVANTAGES

⋆  User name and Password, For 3 Levels – Administrator, Supervisor and other Level of Users.

⋆  1. Recording of change in Mix design (set point) in a data base as per – user name, date, shift and time.

⋆  2. Recording reason for Change.

⋆  3. Report for total number of tons used for each weigh feeder in a specified period – from date to date.

⋆  4. Report of shift changes made hours run, total tons used per feeder.

⋆  5. There will be an export file facility to export the database in DBF format – this file includes the following field
a. Date b. Time c. Each weigh feeder set point d. Shift a, b & c e. Reason for change f. User name

⋆  6. User Restrictions.
a. Administrators – Allows all
b. Supervisor-Do not allow the resetting of Totalize
c. User-Allow viewing of reports, exporting files, changing set points limited to number of times permitted per day by supervisor.

⋆  7. Starting and stopping of weigh feeder from Remote PC.

⋆  8. Data of 2 full years can be stored.

⋆  9. Trouble shooting from our office, no Engineers required at site for any kind of trouble shooting. Online instruction shall be given in case of trouble. This helps in solving the problem at the earliest possible time.

CUSTOMIZATION

⋆  We can completely customise the weigh feeder as per our customers needs and requirements.

⋆  The software features can be built as per our customers needs and requirements

⋆  The conveyor length and width can be matched or can be designed as per the site conditions.

⋆  The minimum height requirements shall be 900 mm from feed hopper till discharge belt conveyor, the minimum conveyor length required shall be 1500 mm Centre to centre.

STANDARD WEIGH FEEDER CAPACITIES AVAILABLE

SL NO	WEIGH FEEDER CAPACITY IN TPH	OPERATING RANGE SET POINTS	BELT WIDTH IN MM
01	01	100 Kg/Hour ~ 900 Kg/Hour	350 mm
02	02	200 Kg/Hour ~ 1800 Kg/Hour	400 mm
03	03	300 Kg/Hour ~ 2700 Kg/Hour	400 mm
04	05	500 Kg/Hour ~ 4500 Kg/Hour	600 mm
05	7.5	0.750 TPH ~ 6.750 TPH	650 mm
06	10.00	1.00 TPH ~ 9.00 TPH	650 mm
07	15.00	1.50 TPH ~ 13.5 TPH	650 mm
08	20.00	2.00 TPH ~ 18.00 TPH	650 mm
09	25.00	2.50 TPH ~ 22.50 TPH	650 mm
10	30.00	3.00 TPH ~ 27.00 TPH	800 mm
11	40.00	4.00 TPH ~ 36.00 TPH	800 mm
12	50.00	5.0 TPH ~ 45.0 TPH	1000 mm
13	75.00	7.5 TPH ~ 67.5 TPH	1000 mm
14	100.0	10.0 TPH ~ 90.0 TPH	1500 mm

An industry-leading cable-based smart level sensor system that is designed to handle some of the most dynamic conditions. The Mako System state-of-the-art sensors, a wide choice of operator interfaces, auxiliary outputs and displays, as well as unique remote managed inventory solutions. The Mako Systems significant advances in this field-proven approach to reliably monitoring the level of material in bins, silos and tanks. The Mako Systems level sensor technology is suitable for use with a multiplicity of powders, granules, slurries and liquids, even in the most harsh and dynamic conditions. The Model SMU (Silo Monitoring Unit), incorporates technological advancements, requires no field adjustments and its robust design provides virtually maintenance-free operation. The SMU is suited for most any application and can be equipped with a variety of mounting flanges and plumb bobs. Once a measurement cycle is initiated, the sensor (SMU) “smart” motor system controls the descent of a plumb bob, attached to a heavy-duty stainless steel cable, into the vessel. The SMU measures the amount of cable dispensed via its unique optical sensing system. The SMU’s optic system is completely sealed from the internal environment of the electronics compartment, which is isolated and sealed from material ingress in the mechanical compartment, to ensure long-term reliable operation.

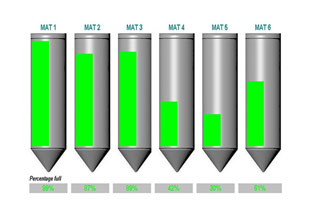

Our Silo weighing Solutions, range from a simple weight monitoring system to systems integrated with PLC, data logging and other sophisticated plant and remote control systems. We offer weighing systems which is making easy for real time analysis and control of the application, whether it is a single silo or multiple silos, commonly two to ten load cells are installed in a silo weighing system. The accuracy that can be achieved depends upon the specific characteristics of the silo, situation and associated constraints.

Our system measures the actual weight of the silo and contents to give a true picture of the amount on hand We can provide visual warning at High and Low levels, plus audible warning if you need it, to prevent loss of production and missed deliveries. Ability to check every delivery, even weeks ago,

By implementing our products, you will be able to view easy to read graphs and generate reports that help you keep track of your Production, Stock, and Dispatch, with date and time. Your real-time and historical production data is accessible. We provide the tools to allow you to view all of this information locally, on-site, via touch screen monitors or computer through secured servers. we can also supply a wide range of load cells and digital weight indicators for fitting to the silos and tanks to allow their contents to be weighed

Features

⋆  Very high accuracy

⋆ Menus with password protection

⋆ Easy Calibration procedure, easy to read screen

⋆ Choice of kg or tonnes in Display

⋆ Both Resettable and Non-Resettable Totaliser

⋆ Remote Display & Totaliser Options

⋆ Provision of various kinds of reports and alarms

⋆ USB Memory data logging allowing quick and easy access to data

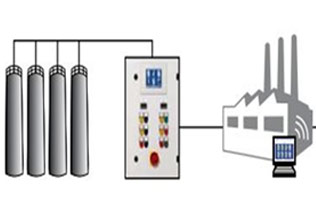

Automation is a continuous process of monitoring or controlling a process, which can be in different industry. Automation process is achieved by various means including different ranges of Instruments, Mechanical, Hydraulic, Pneumatic, Electrical, Electronic devices, Computers, usually in Combinations

When we automate a process, we combine different types of automation controls which include discrete control, continuous control, Open and Closed loop Control, Sequential or Logical Sequential control or system state control.

AUTOMATION FOR CEMENT MILL
